Truck 46
- 2024 Seagrave Marauder II 95' Aerialscope
- No Pump / No Tank
- Holmatro Rescue Tools
- Seats 6 Firefighters / 5 SCBA
- Full Complement of Truck/Rope Equip & Ground Ladders
Engine 46-8
- 2019 Pierce Enforcer Custom Chassis
- 2000 GPM Waterous Pump / Husky 3 Foam System
- 750 Gallon Water Tank
- Preconnected Attack & 3"/5" Supply Hose
- Whelen Emergency & Scene Lighting
- Wil-Burt LED Light Tower
- Seats 6 Firefighters / 5 SCBA
- Full Complement of Equipment, Tools, & Meters
Engine 46-7
- 2014 E-One Cyclone Custom Chassis
- 2000 GPM Waterous Pump with CAFS
- 1240 Gal Tank / 40 Gal Foam Cell
- Seats 6 Firefighters / 5 SCBA
Rescue 46
- 2009 E-One Cyclone Custom Rescue Pumper
- 1500 GPM Rear Mount Hale Pump
- Hurst 5000psi Rescue Tools
- Full Complement of Struts & Cribbing
Brush 46
- 2024 Ford F550 / Duramag / CET
- 250 Gallon Water Tank
- 250 GPM CET Pump
- Booster Line
- Forestry Equipment
Marine 46
- 2022 Inmar Inflatable Rescue Boat
- 15.5' Beam
- 30HP Tohatsu Outboard Motor
- Supports Swift Water Rescue
Car 46
- 2019 Chevy Tahoe
- Command Vehicle
- Full Complement of Radio & Communication Equipment
- Accountability Board & Preplans
Car 46-2
- 2022 Ford F-150
- Command Vehicle
- Slide-out Command Module
- Full Complement of Radio & Communication Equipment
- Accountability Board & Preplans
Upcoming Apparatus
Preliminary architectural drawings and technical specifications for Station 46's next-generation heavy rescue platform.
SVI Heavy Walk-In Wet Rescue
Built on a Kenworth T880 tandem-axle chassis with a 24-foot stainless steel body, engineered to serve Station 46 in frontline vehicle extrication, structural firefighting, technical rescue, and emergency incident command.
Mockup and Schematics
Click any blueprint drawing below to expand in full high-resolution with zoom and detail inspection.

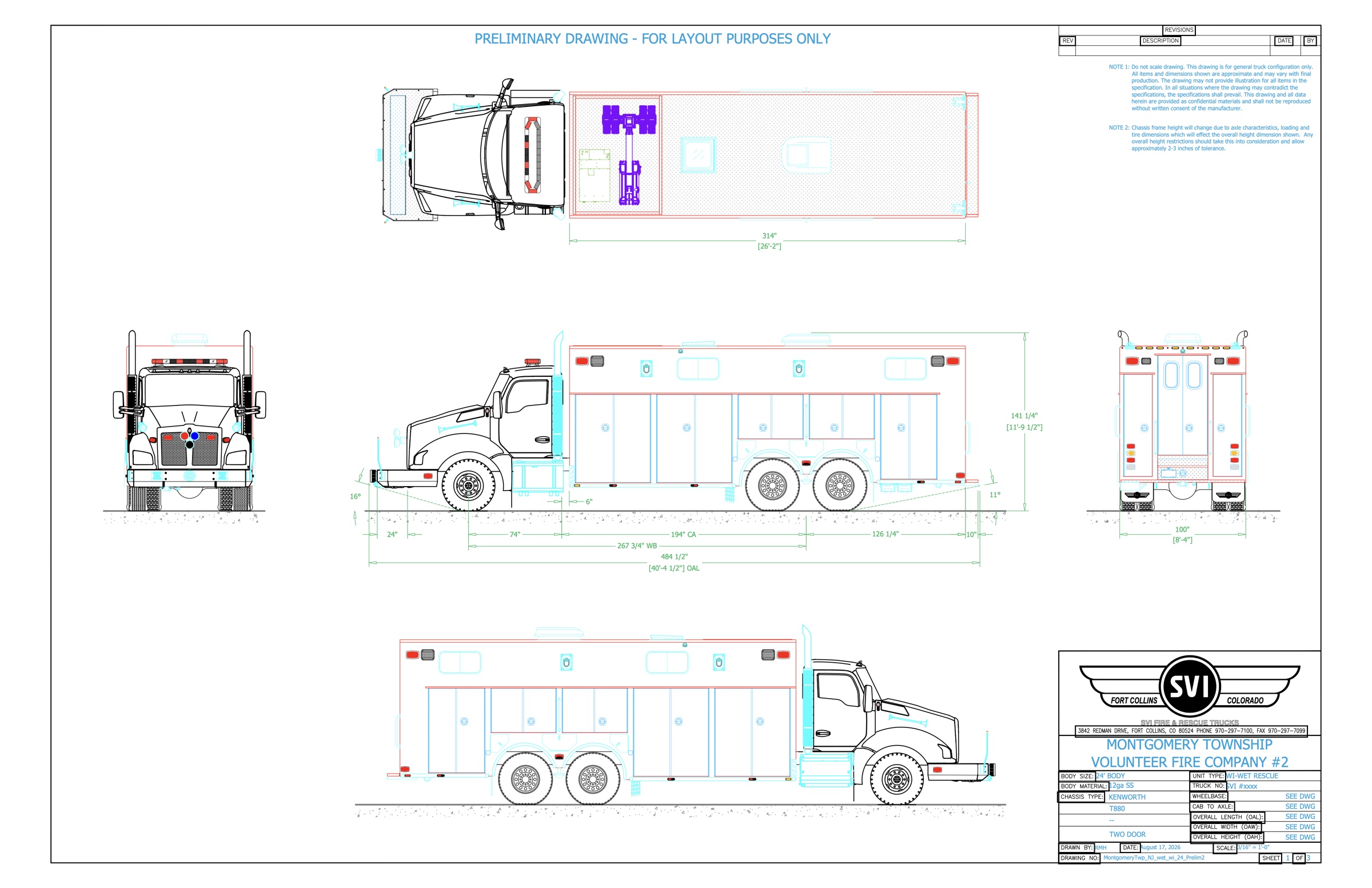

Exterior Elevations & General Layout
Comprehensive profile, top, front, and rear elevations detailing 40' 4½" overall length, 11' 9½" height, Kenworth T880 cab, tandem rear axles, and SVI rescue body geometry.

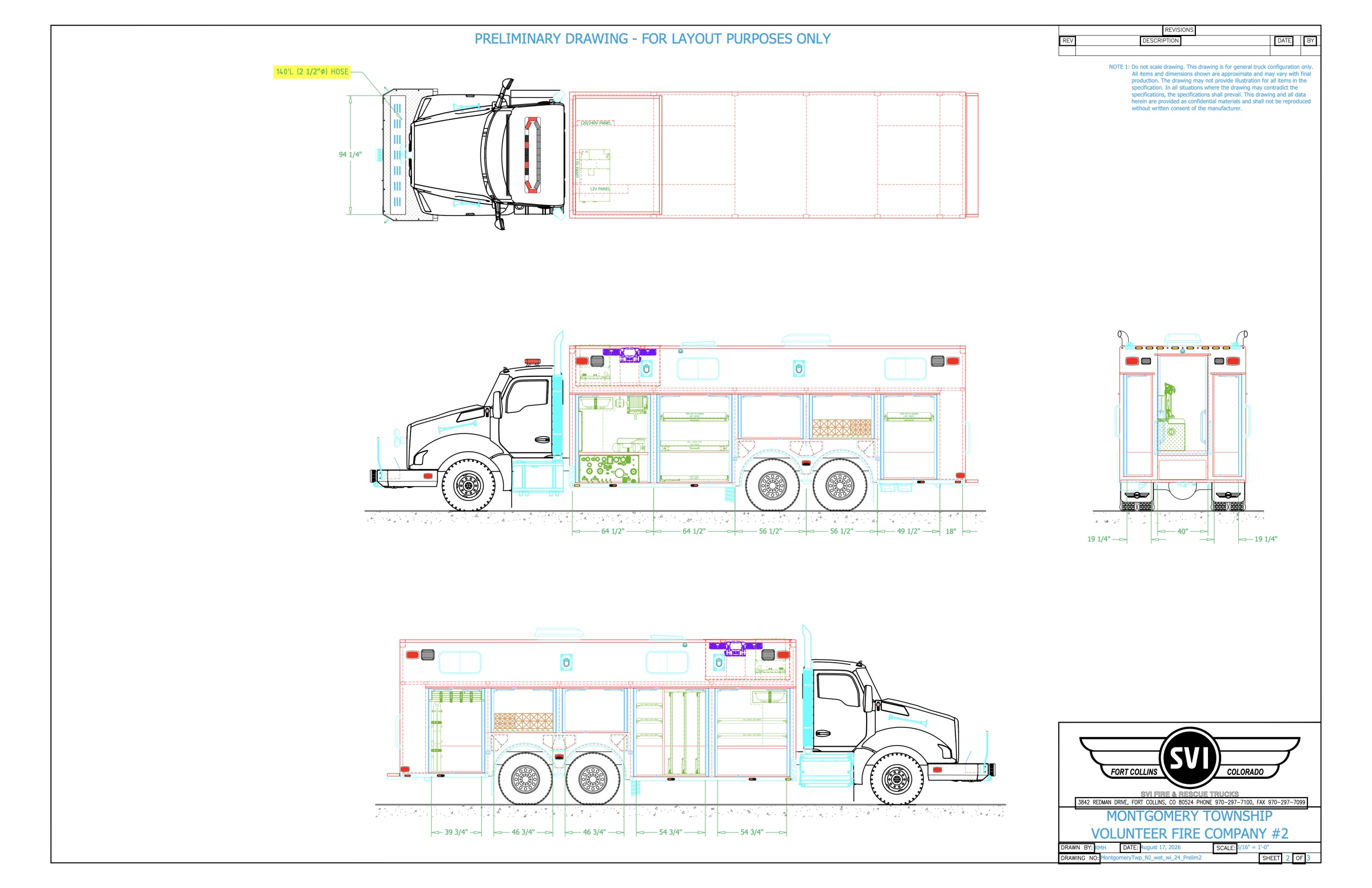

Storage Compartments & Equipment Trays
Detailed roll-up compartment layouts showing 1,000# slide-out trays, 400# roll-out shelves, 28" deep adjustable shelving, 140' 2½" preconnect hose bed, and dual 12V / 120-240V power panels.
Walk-In Interior & Upper Body Structure
Interior walk-in command and crew area layout, custom upper interior cabinetry, ceiling clearance dimensions (80¼" interior height), and integrated rear walk-in access.
